Availability and delivery date contact us for more information.

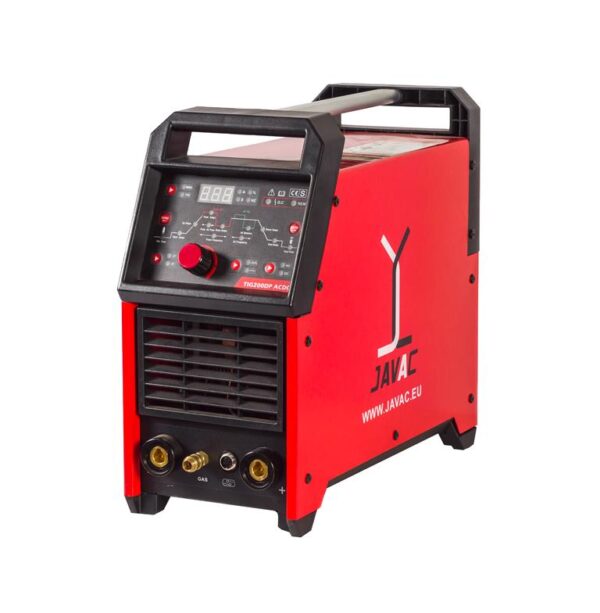

The ASTOR TIG ACDC welding machines, are equipped with Siemens semiconductors, and come from Germany, in addition to its very affordable price, this machine testifies.
Of a high quality, which you can safely compare with machines that cost multiples.
These welding machines are suitable for welding ALU, (all alloys) Magnesium and brass in AC mode, and steel, copper, titanium and stainless steel (Inox).
In DC mode it is important to get the full power out of this machine (200 AMP/60%ED) it is equipped with PFC technology which makes this machine even fully usable on a fuse of 16 AMP, at 230 volts mono.
The control panel of this TIG machine is complete, with a memory card, pulse and double pulse, as well as a mixed pulse. You can set all parameters on the digital panel, post and post gas, pulse, upslope, downslope, etc.
As standard we equip this machine with a SR 26/8 meter tig torch in very flexible silicone rubber coax cable and provided with a leather protective cover for the first half meter, this is appreciated by the professional welder.
This machine has a continuous power, which means it can be used in an industrial environment where intensive welding is performed, up to wall thickness 9 mm in ALU.
As a shielding gas, 100% Argon is used in both AC and DC mode.
| Max. capacity at 60% | 200 A |
|---|---|
| Voltage | 230 volts |
| Insurance | 16 A |
| Power TIG | 20 – 200 A |
| Ability MMA | 140 A |
| Power in kW | 6.4 kW |
| Efficiency | 84% |
| Semiconductors | IGBT Siemens |
| Idle voltage | 56 volts |
| Arc ignition | HF + lift arc |
| Pulse range frequency | 0.5-50 Hz |
| PFC technology | Yes |
| Isolation class | F |
| Up slope time | 0.1 second |
| Down slope time | 3 – 10 seconds |
| Protection class | IP-23 |
| Refrigeration | Air cooled |
| Pre-gas | Yes |
| Post-Gas | Yes |
| Dimensions | 475x200x410 |
| Weight | 19.5 Kg |
Question: The price of 1100 Euro is temptingly low compared to eg Kemppi, Lincoln, EWM, what should I look for here?
Answer: The list price in Germany is 1425 Euro + VAT, but we have booked a large export order of more than 400 machines to Dubai, so that we have obtained an exceptionally competitive price, which you can enjoy temporarily.
Question: how long will this promotion last?
Answer: Not so much longer.
Question: Is this German made?
Answer: Javac is a German brand, yes, but these machines are designed for Panasonic welding in Japan, but production is in South Korea.
Question: What about the quality of the device and the welding characteristics.
Answer: this machine has all the Tig functions on board, has a set-up time of 60% which is exceptionally high, and welds really perfectly, a professional welder will find no difference with machines that cost three times that
Question: Is the torch included? and how long is the torch?
Answer: Available as an option. SR 26/8 Tig torch in very smooth silicone rubber coax cable and equipped with a leather protective cover for the first half meter, length of the torch is 8 meters, price 125.00 Euro.
Question: Can I also get this machine in a water-cooled version?
Answer :Yes, of course you also need a car on which everything can be mounted.
Question:Can I also equip this machine with a foot pedal?
Answer:Indeed this is an option of 360 Euro.
Question: Where can I buy this machine, and is there a technical service? ?
Answer: Technical service is insured through us, but also through a dealer, as well as the spare parts, as are all Javac machines.
Question: To which profiles can I weld in ALU.
Answer: In principe tot 9 mm.
Question: Can I continuously weld here also in AC?
Answer: This machine has a setting time of 60% at 40°C, which means that in Western Europe where the ambient temperature is on average around 20°, you can indeed weld continuously at its maximum power of 200 Amp, much more expensive equipment. not even this.
Question: I have a fuse of 16 Amp, is it possible to weld with this machine on 230 V mono.
Answer: This machine has PFC technology (power factor control) and due to the excellent quality of the Siemens semiconductors, the COS Phi is very high, which indeed allows you to weld continuously in 230 volts.
